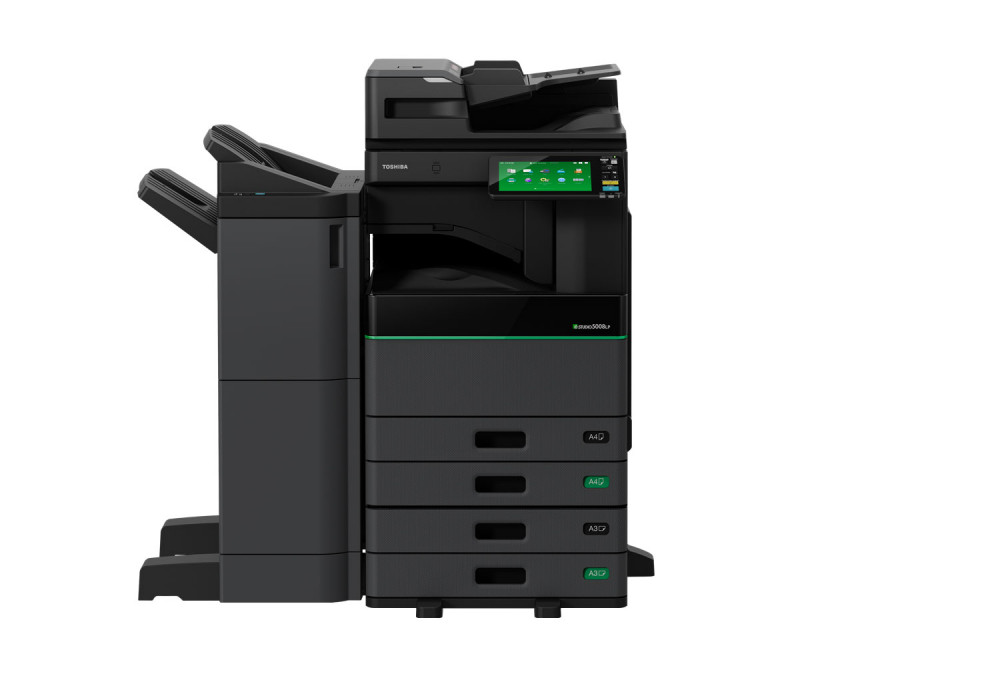

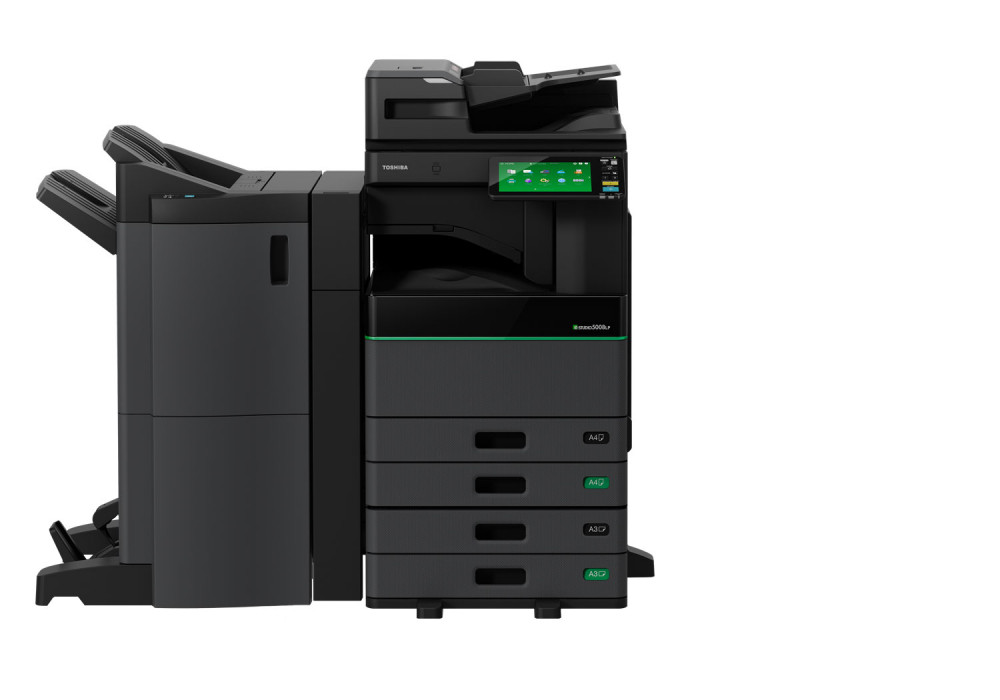

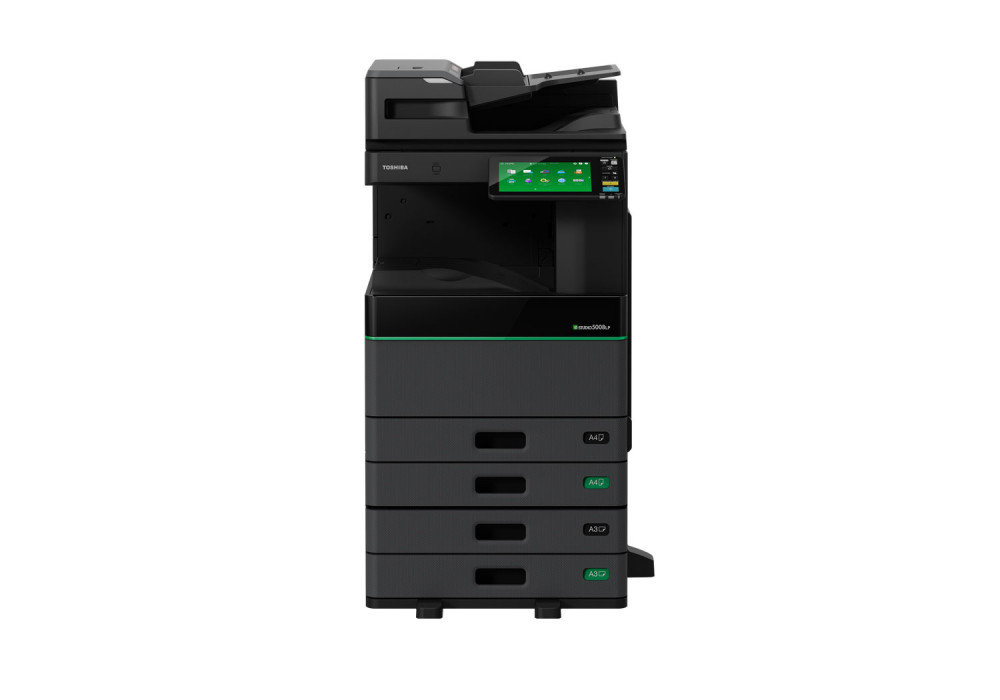

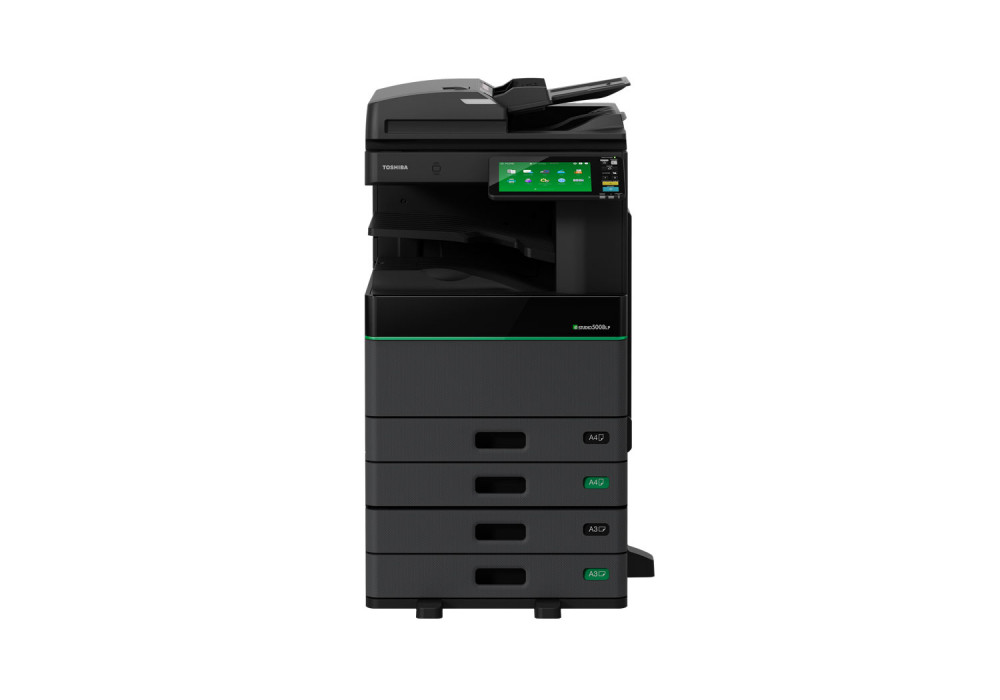

e-STUDIO5008LP

Monochrome printing has never been this green

One single device, which easily connects, integrates and simplifies your workflows - and also helps to save valuable resources. Toshiba’s brand new hybrid technology combines conventional printing with erasable printing, which allows you to reuse paper over and over again.
  • The world’s first multifunction system with erasable print function.
  • Thanks to the unique hybrid printing technology, one single device prints regular as well as reusable prints which saves paper.
  • Designed for businesses which want to combine ecology, economy and efficiency.

For more information please visit our Hybrid MFP page.

Specifications: e-STUDIO5008LP

GENERAL

Print & Copy Speed:
Monochrome: 50 ppm (A4)
25 ppm (A3)
Erasable Blue: 35 ppm (A4)
18 ppm (A3)
Erase Speed:
Cassette: 17.5 ppm (A4), 8.5 ppm (A3)
Bypass: 14.5 ppm (A4), 7.5 ppm (A3)
Warm-up Time:
Approx. 26 seconds from low power mode
Paper Size & Weight ** :
Cassettes: A5R-A3, 60-256 g/m²
Bypass: 100 x 148 mm-A3, 60-256 g/m²
Paper Capacity:
2x 550 sheets (Cassettes)***, 1x 100 sheets (Bypass)****
Maximum 3,200 sheets
Inner Output Tray (virgin/reusable paper) :
With Bridge Kit: 150/120 sheets
Without Bridge Kit: 400/320 sheets
Automatic Duplex** :
A5R, A4, A4R, A3 and other standard formats, 60-256 g/m²
Controller Type:
Toshiba e-BRIDGE

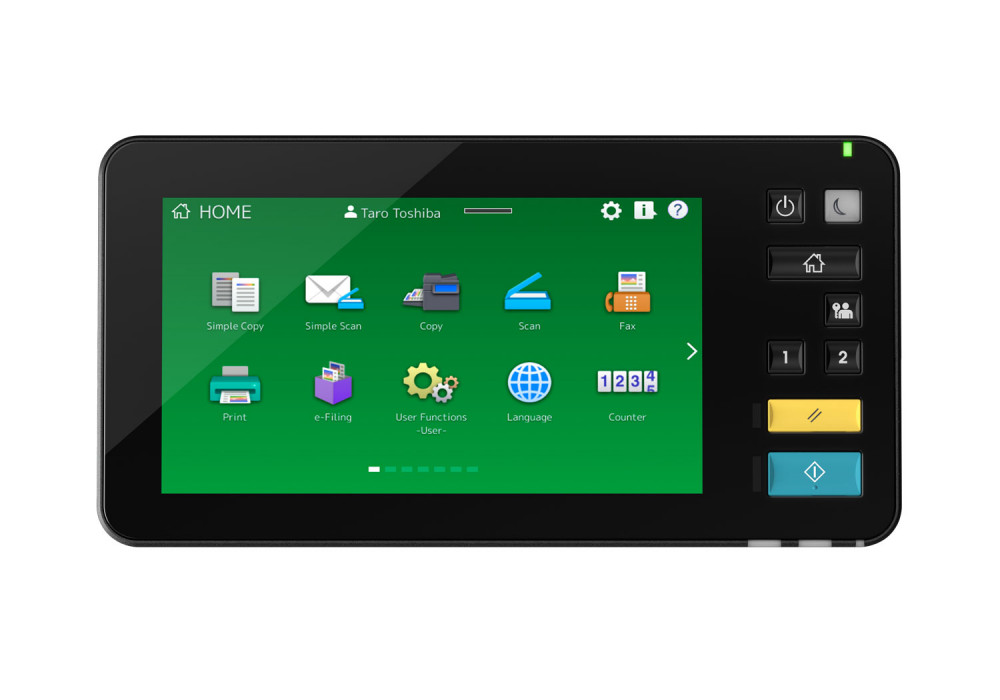

Control Panel:
22.9 cm (9") Multi-Touch Colour Panel
Memory:
Toshiba Secure HDD 320 GB*****, 4 GB RAM
Interface:
10Base-T/100Base-TX/1000Base-T,
High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct*
Dimensions & Weight:
585 x 640 x 787 mm (W x D x H), ~ 73 kg

PRINT

Resolution:
600 x 600 dpi, 5bit,
1,200 x 1,200 dpi, 2 bit (equiv. 3,600 x 1,200 dpi) with PostScript driver
Page Description Languages:
PCL5e, PCL5c, PCL6 (PCL XL), XPS and PostScript 3 compatible
Supported Systems:
Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012/Server 2012 R2/Server 2008 R2 (64 bit), Mac OS X 10.6.8-10.12, Linux/Unix, Citrix, Novell SLES, SAP, AS/400
Network Protocols :
TCP/IP (IPv4/IPv6), IPX/SPX, EtherTalk, NetBios over TCP/IP
Toner Modes :
Erasable Blue, Monochrome
Mobile Printing :
e-BRIDGE Print & Capture, AirPrint, Mopria Print Service, Google Cloud Print
Print Functions:
Universal Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing

SCAN

Resolution:
Maximum 600 x 600 dpi
Scan Speed:
Reversing Automatic Document Feeder*:
up to 73 ipm (300 dpi) in colour and monochrome
Dual Scan Document Feeder*:
up to 240 ipm (300 dpi) in colour and monochrome
Scan Modes:
Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, Searchable PDF* (and other formats like DOCX, XLSX)*
Scan Functions:
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan*, OCR scan*, Scan to Box (e-Filing), WIA, TWAIN

COPY

Resolution:
Scan: 600 x 600 dpi
Print: 600 x 600 dpi,
2,400 (equiv.) x 600 dpi with smoothing
First Copy Output Time :
Monochrome: Approx. 4.4 seconds
Erasable Blue: Approx. 7.8 seconds
Zoom:
25-400% (Platen), 25-200% (RADF/DSDF)*
Copy Modes:
Text, Text/Photo, Photo, Blue Original
Copy Functions:
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode

FAX*

Communication:
Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Transmission Speed:
Approx. 3 seconds per page
Compression:
JBIG, MMR, MR, MH
Fax Memory:
1 GB Transmission/Reception
Network-Fax:
Driver for Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012/Server 2012 R2/Server 2008 R2 (64 bit)
Incoming Fax Routing:
To shared folders (SMB, FTP, IPX/SPX), E-Mail, e-Filing

SYSTEM & SECURITY

Device Management:
e-BRIDGE Fleet Management System*, TopAccess for remote administration and configuration
System Features:
e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 12,060 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print,e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, Erasing of Original Blue Toner
Accounting & Security:
Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Toshiba Secure HDD, Data Overwrite Enabler*, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, IEEE2600.2 compliant*, Scan to Secure PDF
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.
*****:
1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.
**** :
If bypass is used for reusable paper, paper capacity of bypass is max. 30 sheets.
***:
If cassette is used for reusable paper, paper capacity of cassette is max. 400 sheets.
**:
Paper weight for Erasable Blue mode: 64-80 g/m².

Accessories

Hardware

  • GN-4020 - Wireless LAN / Bluetooth Module
  • GS-1007 - Unicode Font Enabler
  • GP-1070 - Data Overwrite Enabler
  • GS-1010 - Meta Scan Enabler
  • GE-1230 - FIPS HDD (320 GB)
  • KN-5005 - Bridge Kit
  • MH-5005 - Desk
  • GS-1090 - Multi Station Print Enabler
  • GD-1370EU - Fax Board
  • KK-5008 - Manual Pocket
  • KK-2560 - Accessible Arm
  • MJ-6011E/F/S - Hole Punch Unit
  • KA-5005PC - Platen Cover
  • KK-5005 - Work Tray
  • MJ-6105E/F/S - Hole Punch Unit
  • MJ-5015 - Job Separator
  • GS-1080 - Embedded OCR Enabler

Software

  • e-BRIDGE Capture & Store - Simplify your workflows
