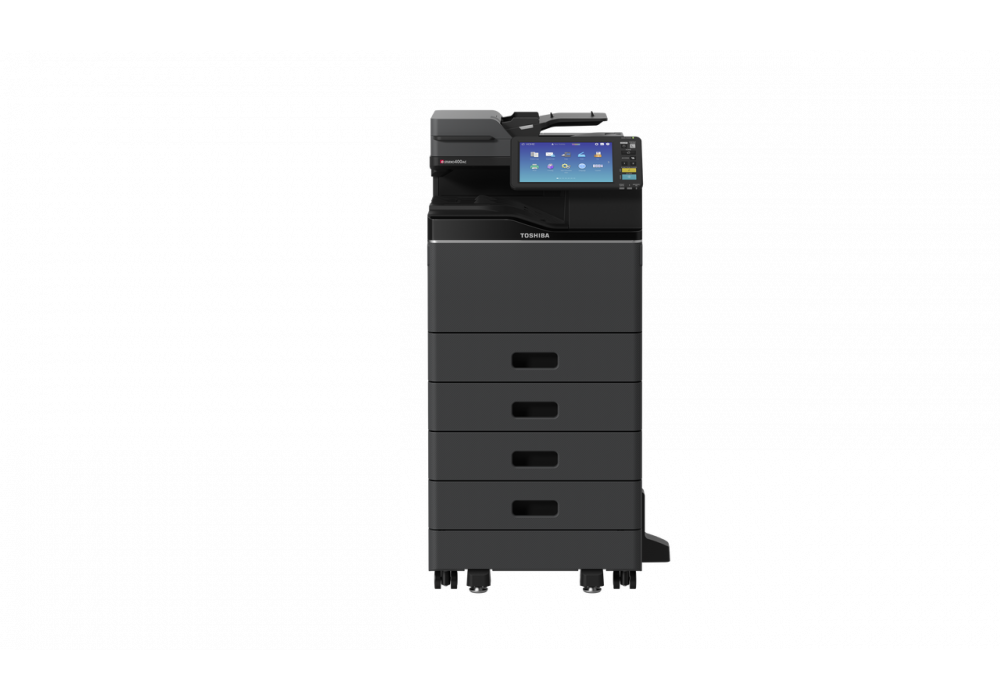

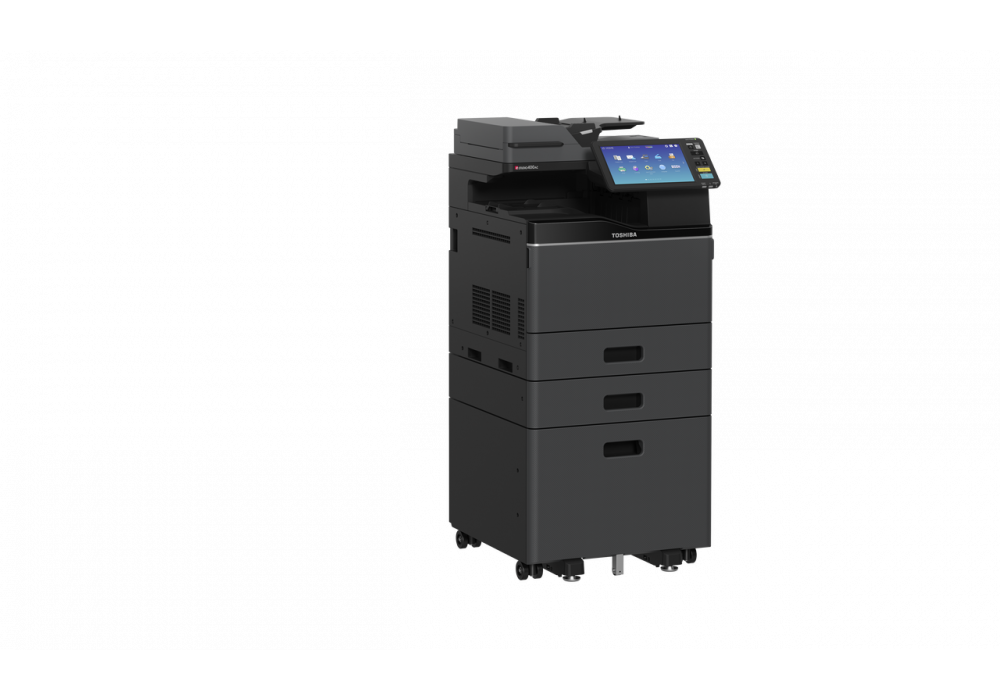

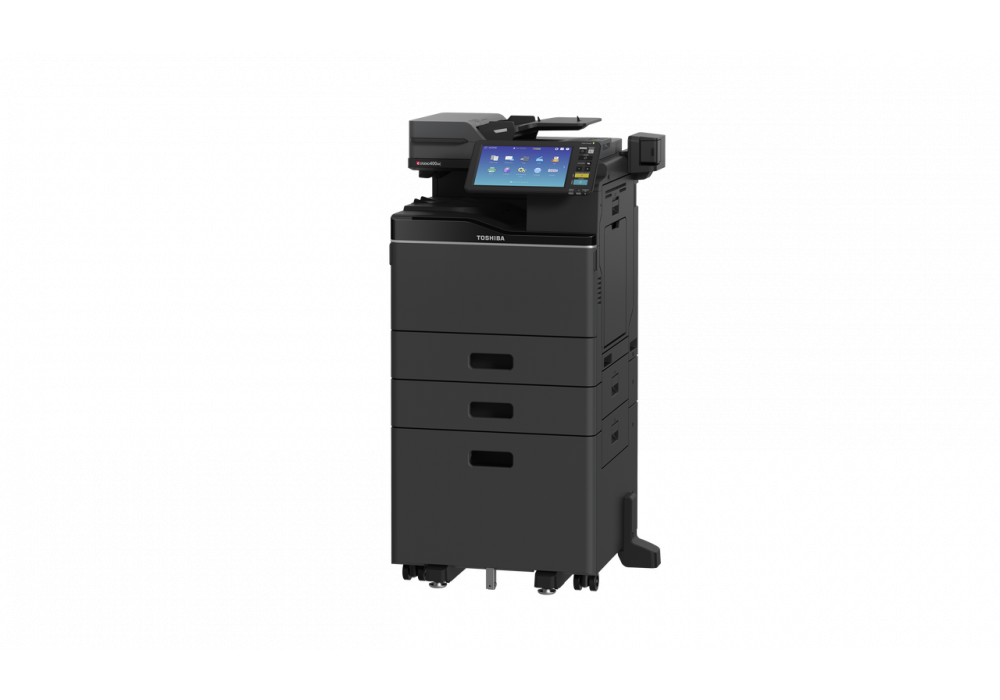

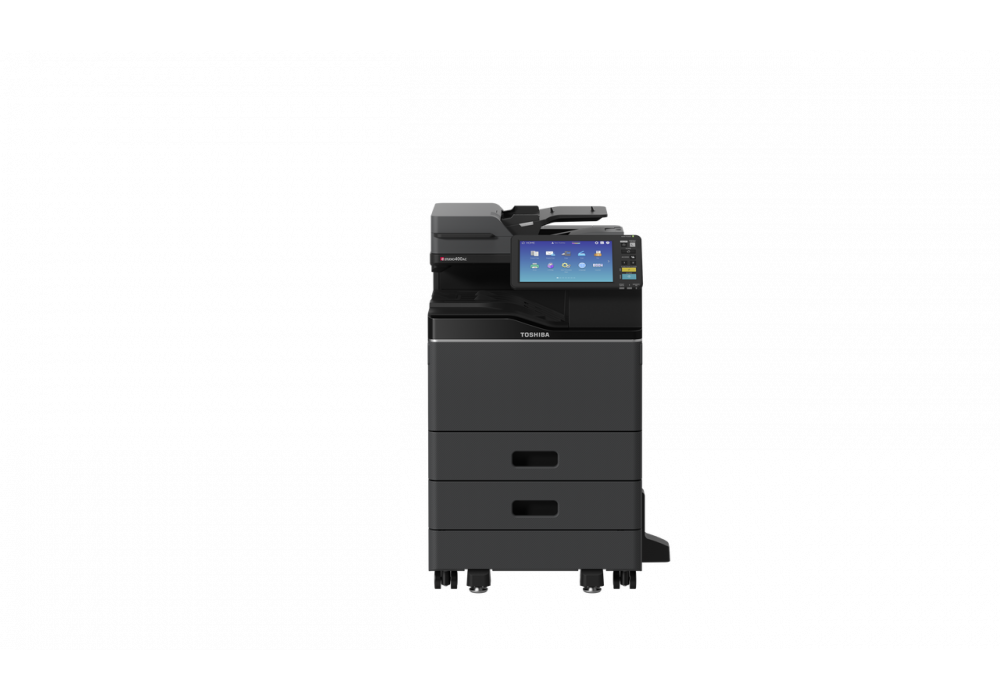

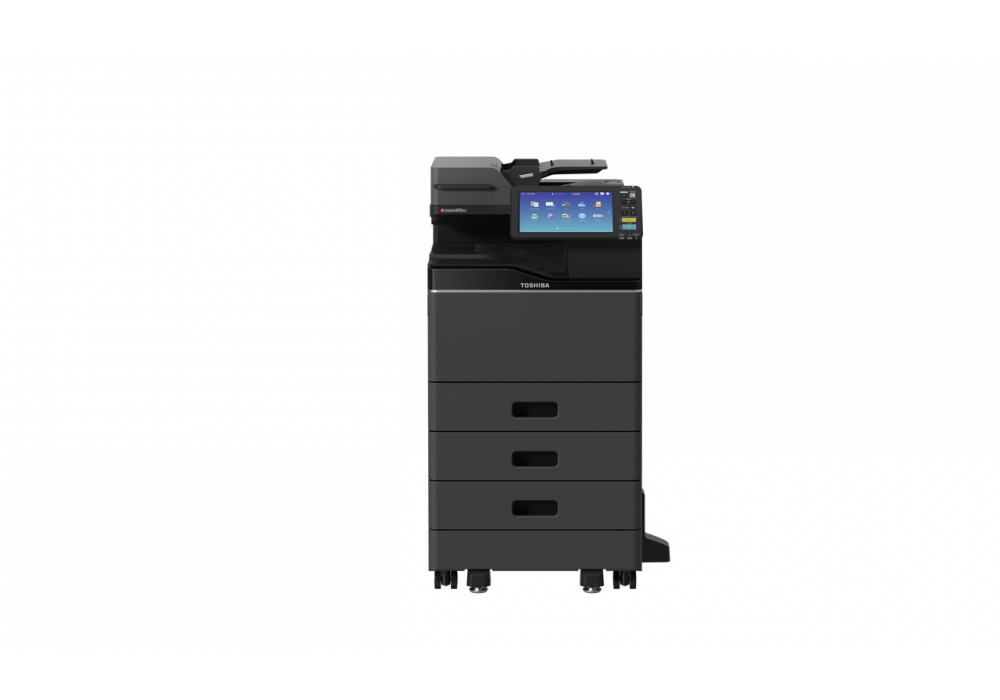

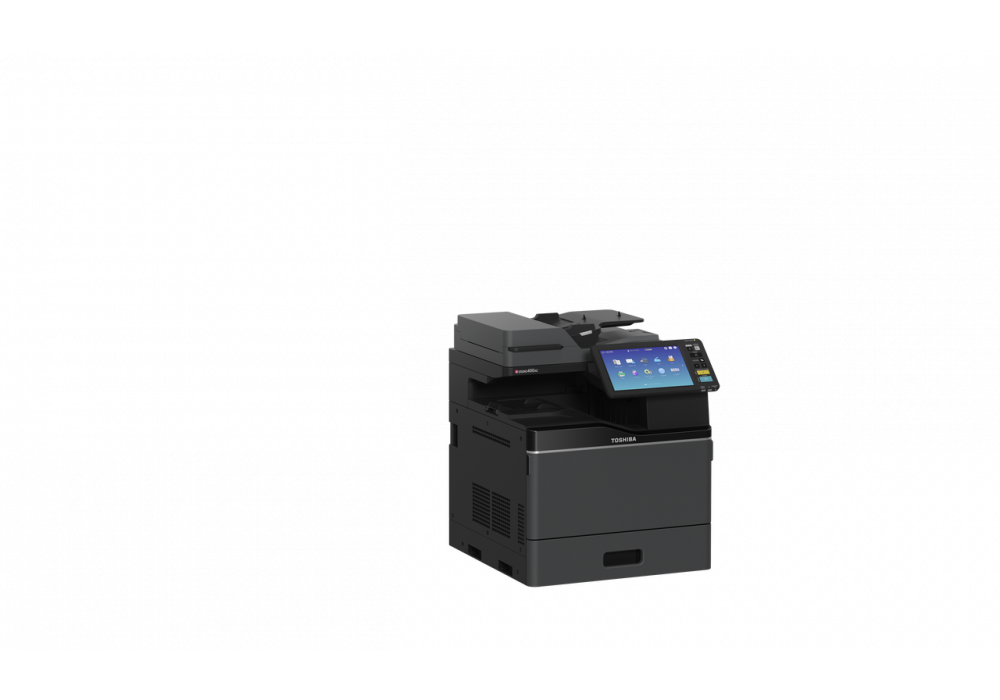

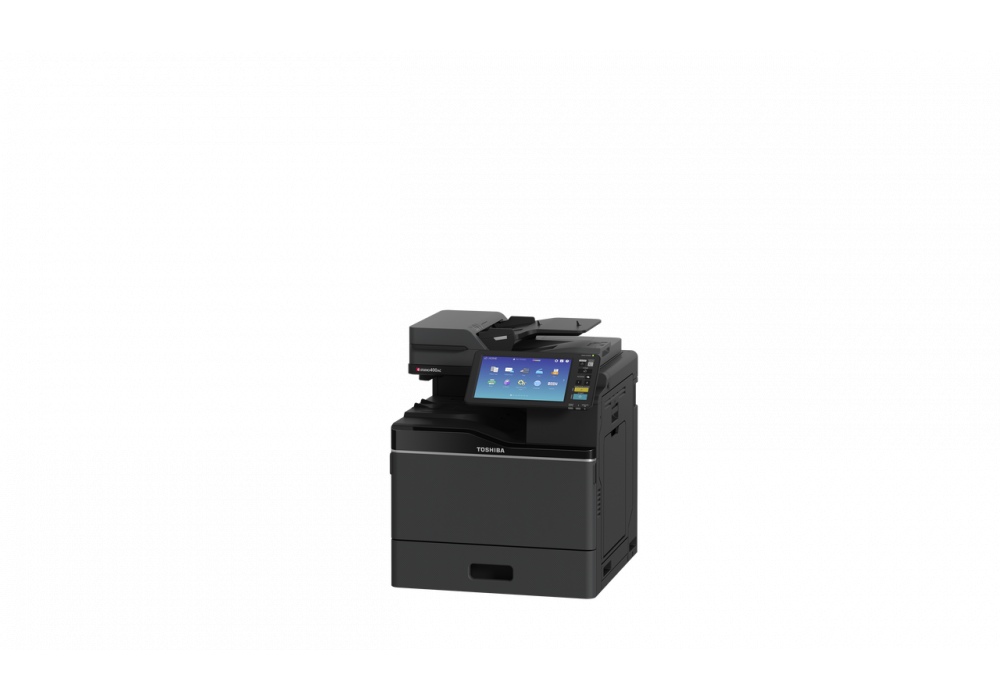

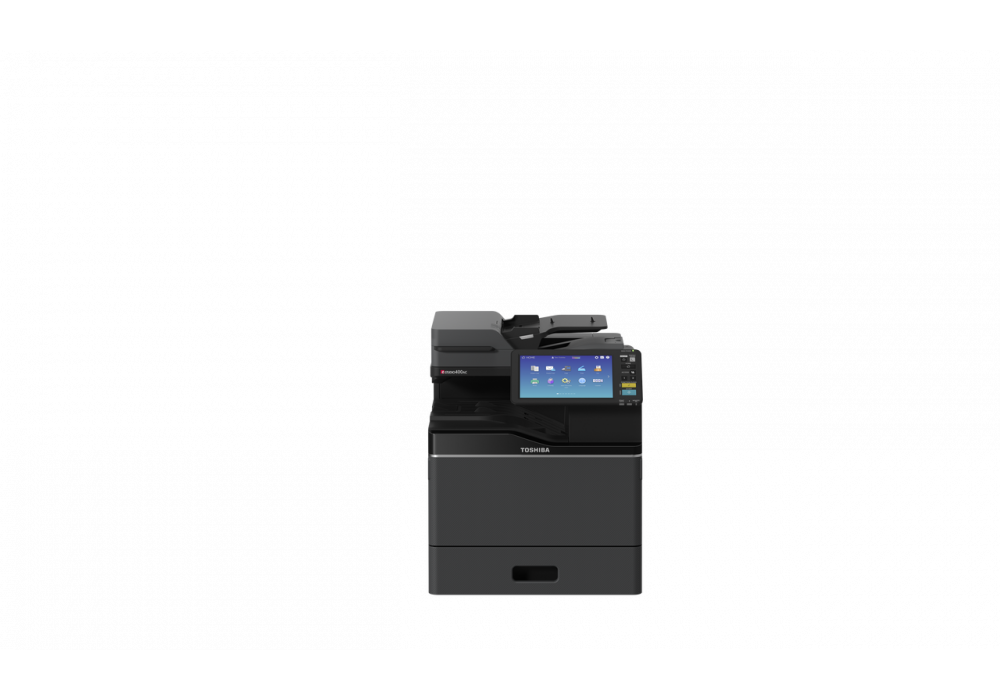

e-STUDIO400AC

Full-colour high performance in A4

Compact, yet feature packed,with the full power of Toshiba's e-BRIDGE Next technology, the e-STUDIO400AC fits seamlessly into modern business environments and can change the way we process documents.
  • Toshiba's A4 colour system delivers outstanding document output at a speed of up to 40 pages per minute.
  • Its large, fully customisable user interface enables you boost efficiency and tailor workflows to fit your needs.
  • The model easily integrates into the A3 e-BRIDGE Next line. It gives you all the convenience of Toshiba colour systems, fits seamlessly into modern business environments and supports cloud and mobile printing.

For more information please visit our e-BRIDGE Next page.

Specifications: e-STUDIO400AC

GENERAL

Print & Copy Speed:
40 ppm (A4)
Warm-up Time:
~ 18 seconds from low power mode
Paper Size & Weight:
Cassette: A5-A4, 60-256 g/m²
Bypass: A4 - 98 x 148 mm, banner paper (up to 215.5 x 1.321 mm, 90-163 g/m²)
Paper Capacity:
Cassettes: 550 sheets,
Bypass: 1x 100 sheets,
Max. 3,200 sheets
Inner Output Tray:
250-sheet capacity
Automatic Duplex:
A5-A4, 60-256 g/m²
Controller Type:
Toshiba e-BRIDGE Next

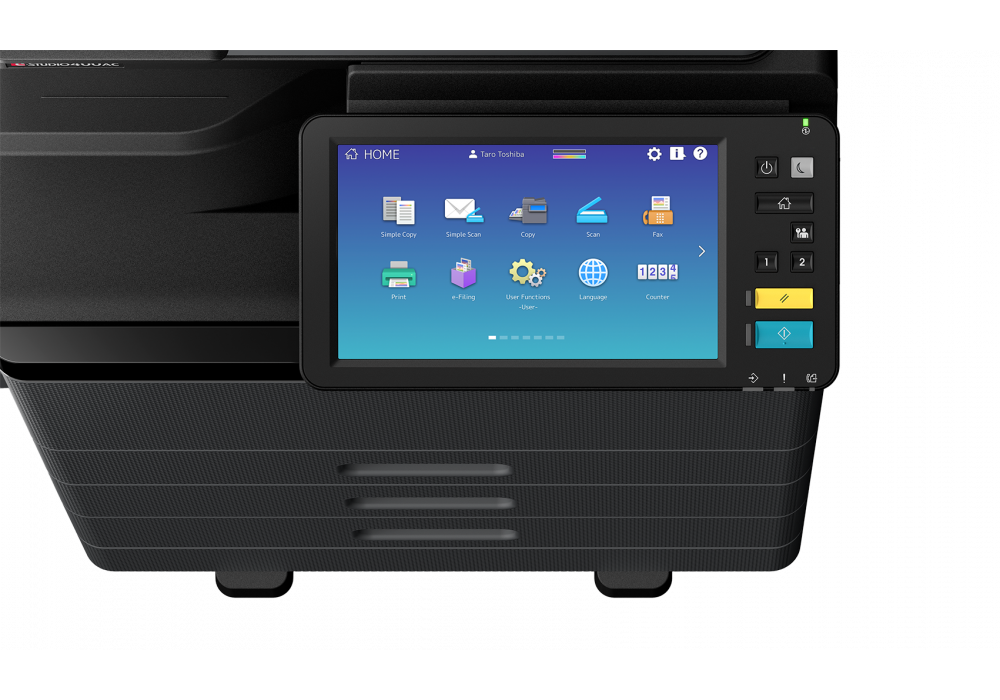

Control Panel:
26 cm (10.1") Multi-Touch Colour Panel
Memory:
Toshiba Secure HDD 320 GB**, 4 GB RAM
Interface:
10Base-T/100Base-TX/1000Base-T,
High-Speed USB 2.0, WLAN*, Bluetooth*, Wi-Fi Direct*
Dimensions & Weight:
520 x 540 x 634 mm (W x D x H), ~ 53 kg

PRINT

Resolution:
600 x 600 dpi, 3 bit
1,200 x 1,200 dpi, 1 bit with PostScript driver only
Page Description Languages:
PCL5e, PCL5c, PCL6 (PCL XL), XPS, PDF and PostScript 3 compatible
Supported Systems:
Windows 10/8.1, Windows Server 2019 (64bit)/Server 2016/Server 2012 R2/Server 2012/, Mac OS X 10.7.5-10.15, Linux/Unix, Citrix, Novell SLES, SAP, AS/400
Network Protocols :
TCP/IP (IPv4/IPv6), IPX/SPX, EtherTalk, NetBios over TCP/IP
Colour Modes:
Auto-Colour (ACS), Colour, Twin Colour, Monochrome
Colour Settings:
ICC profile colour management, RGB substitution, Brightness, Saturation, Contrast, Colour Balance
Mobile Printing :
e-BRIDGE Print & Capture, AirPrint, Mopria Print Service, Google Cloud Print
Print Functions:
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, E-Mail direct printing

SCAN

Resolution:
Maximum 600 x 600 dpi
Scan Speed:
Dual Scan Document Feeder (DSDF):
up to 80 ipm in colour and 116 ipm in monochrome (300 dpi/duplex)
Scan Modes:
Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, PDF/A-2, Searchable PDF* (and other formats like DOCX, XLSX)*
Scan Functions:
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan*, OCR Scan*, Scan to Box (e-Filing), WIA, TWAIN

COPY

Resolution:
Scan: 600 x 600 dpi monochrome, 300 x 600 dpi colour
Print: 600 x 600 dpi, 3 bit,
equiv. 2,400 x 600 dpi with smoothing (monochrome only)
First Copy Output Time :
Colour: ~ 6.3 seconds
Monochrome: ~ 5.1 seconds
Zoom:
Platen: 25-400%, DSDF: 25-200%
Copy Modes:
Text, Text/Photo, Photo, Printed Image, Map, Image Smoothing
Colour Modes:
Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome
Colour Settings:
Hue, Saturation, Colour Balance, RGB adjustment, 5 one-touch modes
Copy Functions:
Electronic Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode

FAX*

Transmission Speed:
~ 3 seconds per page
Compression:
JBIG, MMR, MR, MH
Fax Memory:
1 GB Transmission/Reception
Network-Fax:
Driver for Windows 10/8.1 (32/64 bit), Windows Server 2019/Server 2016/Server 2012 R2/Server 2012
Incoming Fax Routing:
To shared folders (SMB, FTP), E-Mail, e-Filing
Communication:
Super G3, Internet Fax T.37

SYSTEM & SECURITY

Device Management:
TopAccess for remote administration and configuration
System Features:
e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 12,060 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print, e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, PCL Barcode printing, e-BRIDGE Plus embedded apps
Accounting & Security:
Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Toshiba Secure HDD, Data Overwrite Enabler*, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, Scan to Secure PDF, Pull-printing*
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.
**:
1GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

Accessories

Hardware

  • GD-1370EU - Fax Board
  • KK-2560 - Accessible Arm
  • GE-1230 - FIPS HDD (320 GB)
  • GR-1340 - Panel Ten-Key Option
  • GR-1390 - Caster
  • KD-1071 - Large Capacity Feeder
  • GR-1400 - Internal Card Reader Holder
  • MH-4000 - Desk
  • MJ-1047 - Offline Stapler
  • GR-1380 - Spacer
  • MY-1050 - Paper Feed Unit
  • GN-4030 - Wireless LAN/Bluetooth Module
  • GQ-1280N - Harness Kit for Coin Controller
