e-STUDIO3028A

  • Monochrome A3 print, scan, copy and fax systems with a speed of up to 30 pages per minute for today’s business needs
  • Advanced technology combined with ease-of-use for more efficiency in medium- to large-sized workgroups requiring reliable document output and excellent image quality
  • A large range of options for flexible customisation and easy adaptation to your company’s needs

For more information please visit our e-BRIDGE Next page.





Specifications: e-STUDIO3028A

GENERAL

Print & Copy Speed:
30 ppm (A4)
16 ppm (A3)
Warm-up Time:
~ 14 seconds from low power mode
Paper Size & Weight:
Cassettes: A5R-A3, 60-256 g/m²
Bypass
Single Feed: 100x148 mm-A3, 52-256 g/m²,
Multi-Feed: 100x148 mm-A3, 60-256g/m²
Banner paper (up to 305 x 1,200 mm, 90-163g/m²)
Paper Capacity:
Cassettes: 2x 550 sheets, Bypass: 1x 100 sheets
Max.: 5,200 sheets
Inner Output Tray:
550-sheet capacity
Automatic Duplex:
A5R-A3, 60-256 g/m²
Controller Type:
Toshiba e-BRIDGE Next
Control Panel:

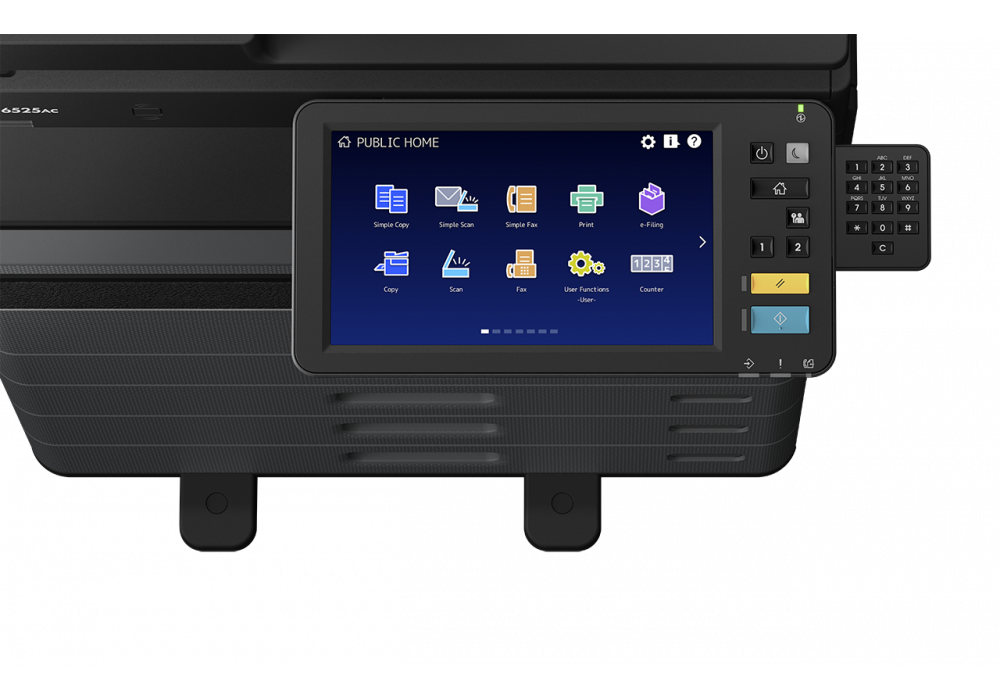

26 cm (10.1") Multi-Touch Colour Panel
Memory:
Security SSD 128GB**, 4 GB RAM
Interface:
10Base-T/100Base-TX/1000Base-T,
High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct*
Dimensions & Weight:
585 x 586 x 787 mm (W x D x H), ~ 55 kg
Initial Consumables:
Drum

PRINT

Resolution:
600 x 600 dpi, 1 bit
equiv. 2,400 x 600 dpi (with smoothing),
1,200 x 1,200 dpi, 2bit (equiv. 3,600 x 1,200 dpi) with PostScript driver only
Page Description Languages:
PCL5e, PCL5c, PCL6 (PCL XL), PDF, PS3 and (JPEG)
Supported Systems:
Windows 11/10/8.1, Windows Server 2022/2019/2016, Mac OS X 10.12-14, Linux/Unix, Citrix, SAP, AS/400
Network Protocols :
TCP/IP (IPv4/IPv6), NetBios over TCP/IP
Mobile Printing :
e-BRIDGE Print & Capture, Mopria® Print Service, AirPrint®
Print Functions:
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, E-mail direct printing

SCAN

Resolution:
Max.600 x 600 dpi
Scan Speed:

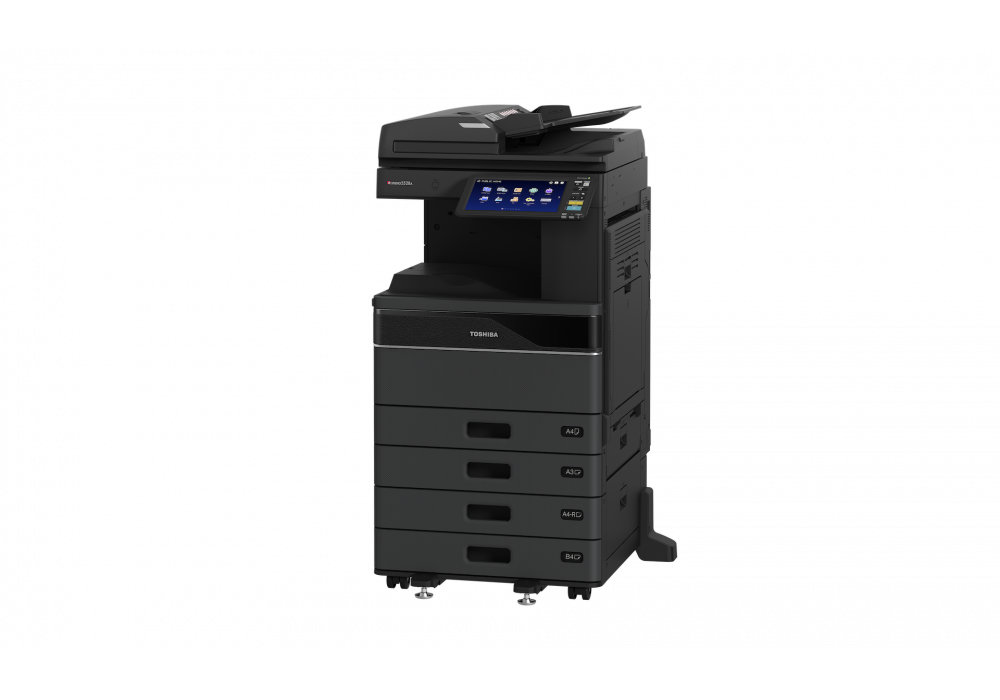

Reversing Automatic Document Feeder*:
up to 73 ppm (300 dpi) in colour and monochrome

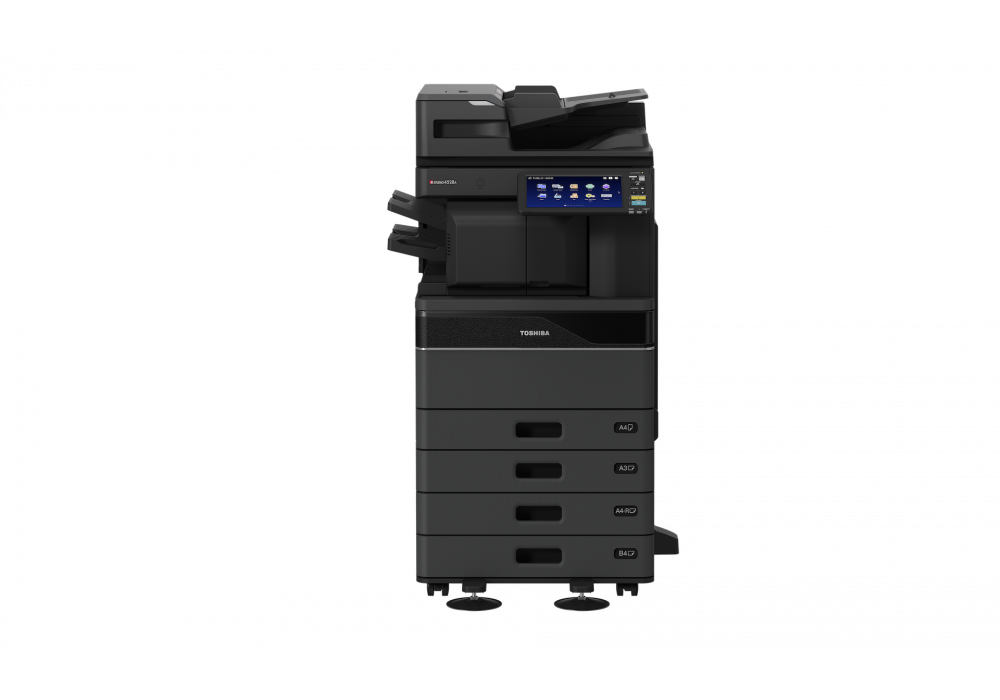

Dual Scan Document Feeder*:
up to 240 ppm (300 dpi) in colour and monochrome
Scan Modes:
Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, PDF/A-2, Searchable PDF* (and other formats like DOCX, XLSX)*
Scan Functions:
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, Local), Meta Scan*, OCR scan, Scan to Box (e-Filing), WIA, TWAIN

COPY

Resolution:
Scan: 600 x 600 dpi
Print: 600 x 600 dpi, 1 bit, equiv. 2,400 x 600 dpi (with smoothing)
First Copy Output Time :
~ 4.3 seconds
Zoom:
Platen*: 25-400%, RADF*/DSDF*: 25-200%
Copy Modes:
Text, Text/Photo, Photo, Custom
Copy Functions:
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode

FAX*

Communication:
Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Transmission Speed:
~ 3 seconds per page
Compression:
JBIG, MMR, MR, MH
Fax Memory:
1 GB Transmission/Reception
Network-Fax:
Driver for Windows 11/10/8.1, Windows Server 2022/2019/2016
Incoming Fax Routing:
To shared folders (SMB, FTP), E-Mail, e-Filing

SYSTEM & SECURITY

Device Management:
TopAccess for remote administration and configuration
System Features:
e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 1,233,840 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print, e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, PCL Barcode printing, e-BRIDGE Plus embedded apps
Accounting & Security:
Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Security SSD, Data Overwrite function when optional HDD is chosen, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, Scan to Secure PDF, Pull-printing*
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.
**:
1GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

Accessories

Hardware

  • GN-4030 - Wireless LAN/Bluetooth Module
  • KN-5005 - Bridge Kit
  • MH-5005 - Desk
  • GS-1090 - Multi Station Print Enabler
  • GD-1370EU - Fax Board
  • KK-2560 - Accessible Arm
  • MJ-6011E/F/S - Hole Punch Unit
  • GS-1007 - Unicode Font Enabler
  • KA-5005PC - Platen Cover
  • GS-1010 - Meta Scan Enabler
  • MJ-5014 - Job Separator
  • KK-5005 - Work Tray
  • GR-1340 - Panel Ten-Key Option
  • MJ-5015 - Job Separator
  • GR-1330 - Accessory Tray
  • GQ-1280N - Harness Kit for Coin Controller
  • GP-1080 - IPSec Enabler
