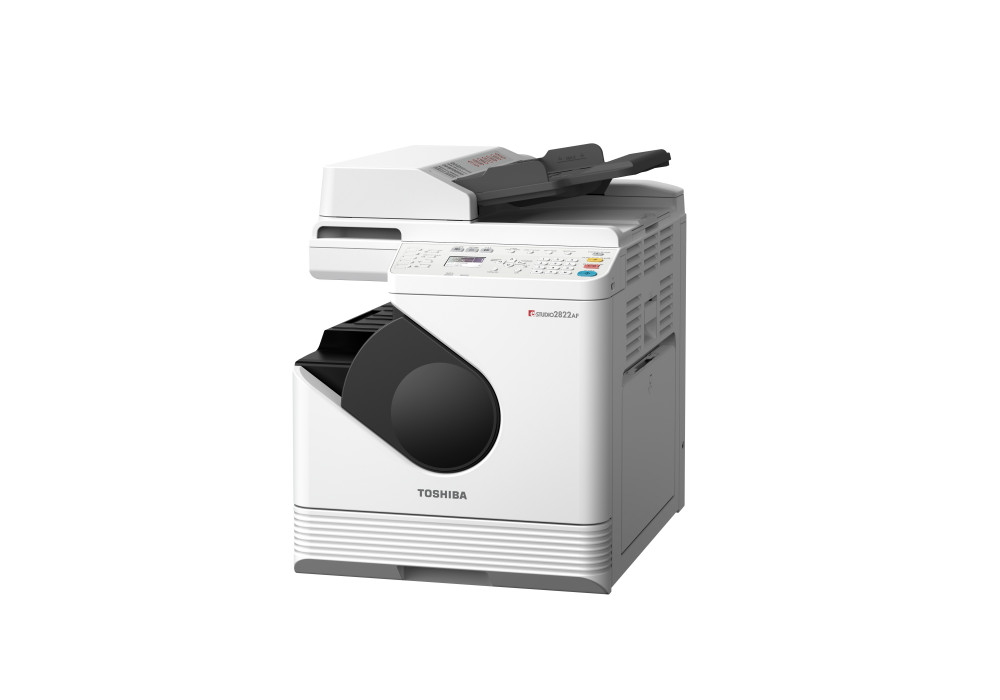

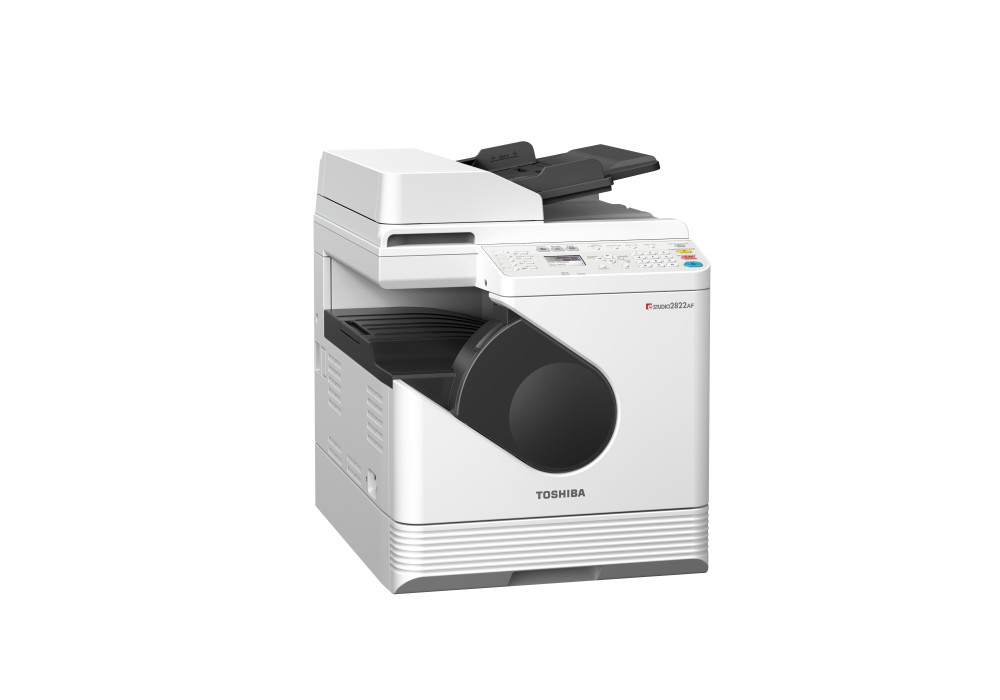

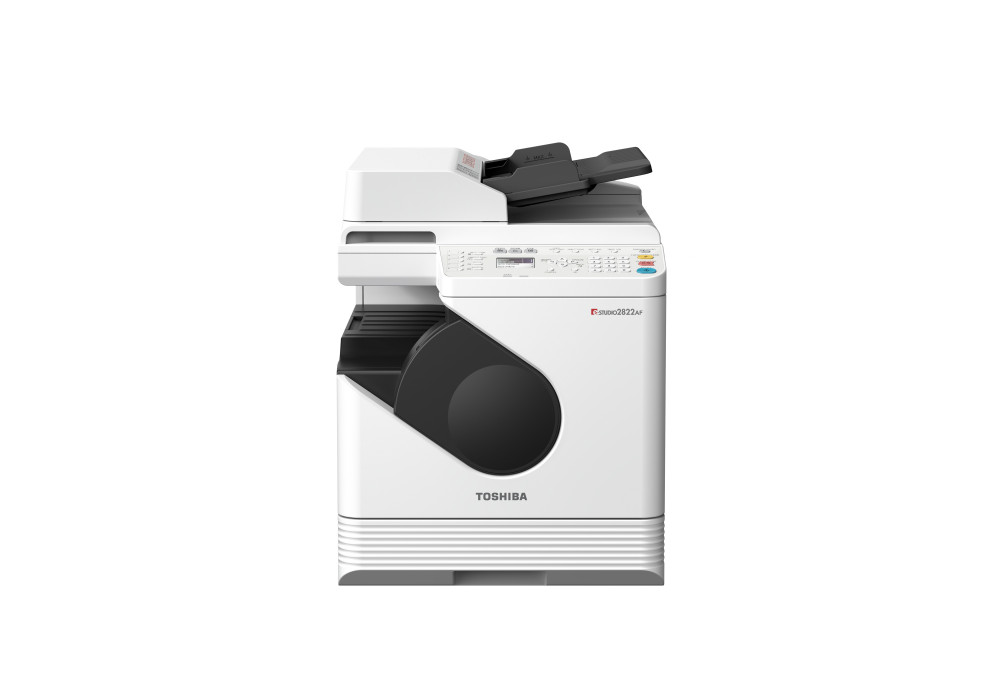

e-STUDIO2822AF

Why compromise? Now you can have A3 from an A4 footprint.

The ideal A4 model for those who do not want to miss the occasional A3 output, but a pressed for space. Print, scan and copy in A3 with our unique A4 model.
  • The e-STUDIO2822AF has a footprint equivalent to that of an A4 printer, but it is also able to print, scan, fax and copy A3 formats.
  • Via bypass feeding and the Automatic Document Feeder, you can switch effortlessly to the larger format when needed.
  • With a print speed of 28 pages per minute, their robustness and compact size, they fit into many work environments like start-up enterprises, back offices or warehouses.

Specifications: e-STUDIO2822AF

GENERAL

Print & Copy Speed:
A4: 28 ppm
A3: 14 ppm
Warm-up Time:
~ 18 seconds
Paper Size & Weight:
Cassette: A4, 64-80 g/m2
Bypass: A5R-A3, 52-216 g/m2
Paper Capacity:
Cassette: 1x 250 sheets, Bypass: 1x 50 sheets
Max. 300 sheets
Inner Output Tray:
100-sheet capacity
Automatic Duplex:
A5R-A3, 64-80 g/m2
Memory:
512 MB RAM
Interface:
10Base-T/100Base-TX (incl. IPv6), High Speed USB 2.0, WLAN* (IEEE 802.11 b/g/n)
Dimensions & Weight:
390 x 540 x 505 mm (W x D x H), ~ 28.5 kg
Initial Consumables:
Toner, Drum, Developer

PRINT

Resolution:
Max. 2,400 x 600 dpi, with smoothing
Page Description Language:
PCL 5e and PCL 6 compatible
Supported Systems:
Windows 10/8.1/7/Server 2008 SP2 (32/64 bit), Windows Server 2016/Server 2012/Server 2008 R2 (64 bit), Mac OS 10.11-10.14, Linux
Print Functions:
A3-printing via Bypass, Universal Printer Driver, Print from USB, Multiple pages per sheet, Toner save mode

SCAN

Resolution:
Max. 600 x 600 dpi
Scan Speed:
Monochrome/Colour: 25/18 ipm (300 dpi)
Document Feeder:
50-sheet capacity, A5R-A3, 50-104 g/m2
Scan Modes:
Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/PDF (via e-STUDIO Scan Editor)
Scan Functions:
A3-scanning via Automatic Document Feeder, Scan templates, Scan to USB, Scan to E-Mail, TWAIN, Scan to Mobile

COPY

Resolution:
Scan: 600 x 600 dpi
Print: 2,400 x 600 dpi with smoothing
First Print Output Time:
~ 6.4 seconds
Zoom:
Platen: 25-400%, RADF: 25-400%
Copy Modes:
Text, Text/Photo, Photo, Background erase
Copy Functions:
A3-copying via Automatic Document Feeder and Bypass, Copy templates, ID Card Copy, Edge Erase, 2-in-1/4-in-1 mode, Auto sort, Electronic sort

FAX

Communication:
Super G3, G3
Transmission Speed:
~ 3 seconds per page
Compression:
JBIG, MMR, MR, MH
Fax Memory:
6 MB Transmission/Reception
Network Fax:
Driver for Windows 10/8.1/7 SP1/Server 2008 SP2 (32/64 bit), Windows Server 2016/Server 2012/Server 2008 R2 (64 bit)
Fax Functions:
One-touch dialing (5 keys), group dialing

SYSTEM & SECURITY

Device Management:
TopAccess for remote administration and configuration
System Features:
Internal toner recycling, Energy-saving modes
Accounting & Security:
100 department codes, IP and MAC address filter, SSL support

Accessories

Hardware

  • GQ-1131 - Harness Kit for Coin Controller
  • GN-1160 - Wireless LAN Module

Software

Drivers & Updates

more ...
