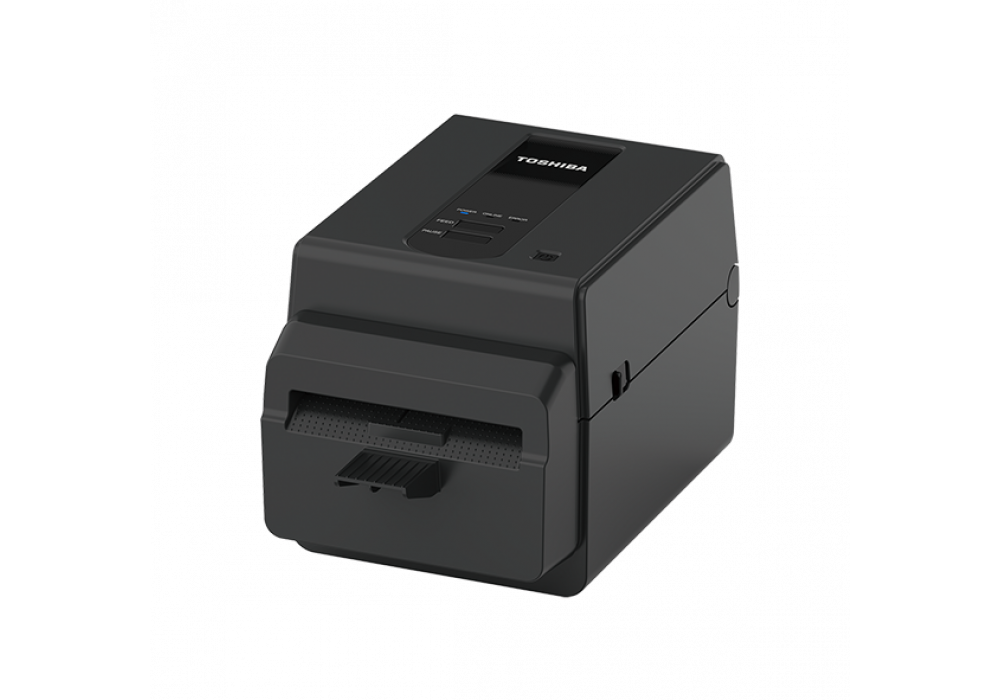

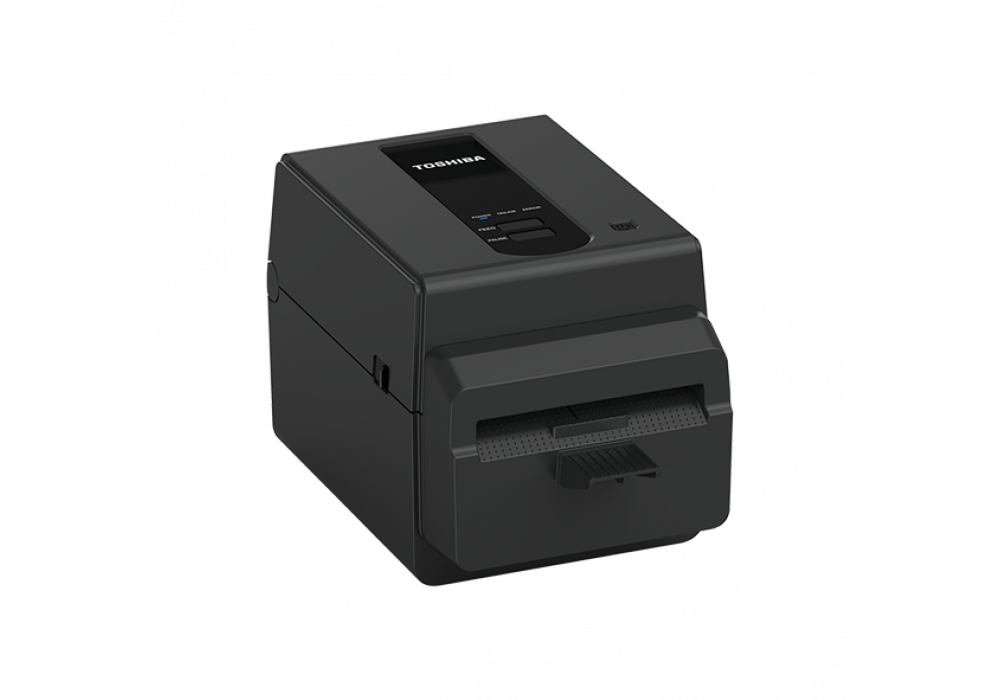

BV420D-GL

Toshiba’s most advanced desktop print technology was incorporated into the sleekest case design for ultimate user experience.

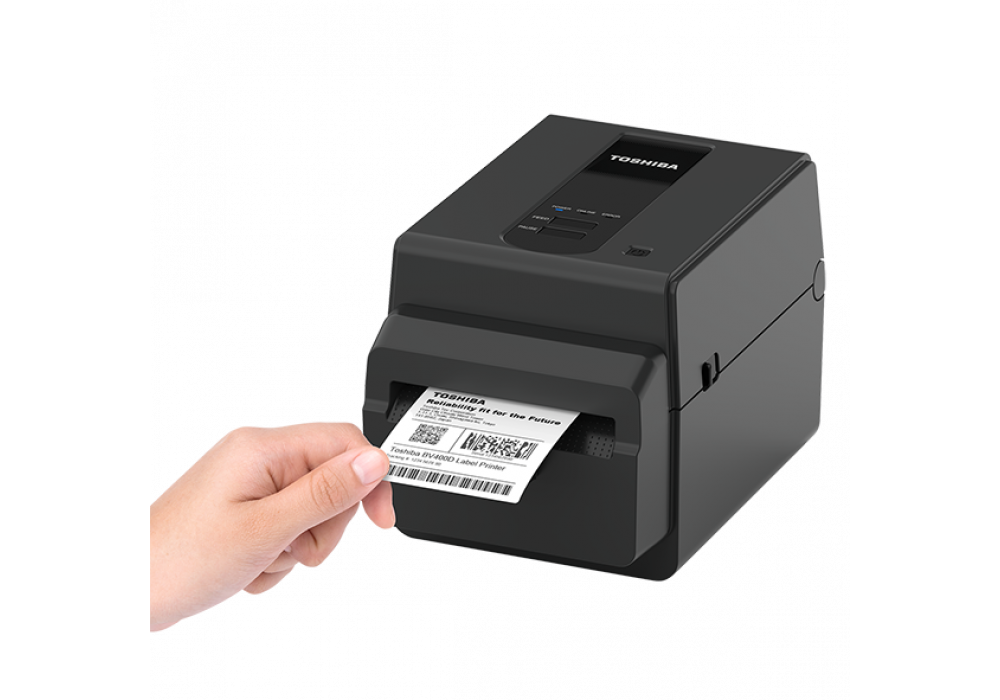

This linerless version enables the printer to print on adhesive labels with no backing paper reducing waste and keeping the working environment safe and clean. Coming with a new powerful and scalable system architecture the BV420D-GL02 is future-proove. With a broad set of standard interfaces and optional Wi-Fi and/or Bluetooth, the BV420D-GL02 easily integrates into even the most complex IT environments.
  • Integrated linerless media cutter
  • Market leading throughput with 7 ips
  • Compact & sleek design with a small footprint
  • Intuitive & clear user experience
  • Vast print languages & emulations
  • Huge performance & functionality at a truly low total cost of ownership
  • SOTI Connect certified for IoT device management

Find out more about our linerless solutions here.

Specifications: BV420D-GL

GENERAL

Print Method:
Direct thermal
Printhead:
Flat head
User Interface:
3x LED, 2x key
Dimensions (W x D x H):
174 x 288 x 173 mm
Weight:
2.6 kg
Memory:
128 MB (FROM), 128 MB (SRAM)
Operating Temperature/Humidity:
5°-35°C (41°-95°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-20°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz

PRINT

Sensor:
Reflective
Resolution:
203 dpi
Max. Print Speed:
7 ips (177.8 mm/s)
Max. Print Width:
99 mm
Print length:
Batch: 8-997 mm, Cut: 19.4-993 mm*, Peel-off: 23.4-150.4 mm*
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar, USPS Intelligent Mail Barcode
2D Codes:
Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix, Aztec Code
Fonts:
Bitmap font, outline font, price font, optional TTF, writable characters

MEDIA

Alignment:
Centred
Backing Paper Width :
32-102 mm
Label Thickness:
0.06-0.19 mm
Inner Media Core Diameter:
38.1 mm
Outer Media Core Diameter:
Standard: Max. 107.0 mm
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

SDK:
iOS, Android
Interface:
USB 2.0, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802,11a/b/g/n (dual band for 2.4 GHz/5 GHz*/**, Bluetooth V2.1 EDR with MFi certified*/**, serial port*
Language mode :
TPCL, Basic Command Interpreter (BCI)
Label Software :
BarTender UltraLite (co-packed)
**:
Availability varies from country to country
IoT Device Management:
SOTI Connect
Emulation:
ZPL II, DPL, SBPL, EPL
Printer Drivers:
Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012/Server 2008 R2

Accessories

  • BV924-ACD-QM-S - AC adaptor cover for BV420D
  • BV700-BLTH-QM-S - Bluetooth interface (V2.1 + EDR) for BV400D series
  • BV700-RS-QM-S - RS-232C serial interface for BV400D series
  • BV700-WLAN-QM-S - Wi-FI interface (802.11 a/b/g/n) for BV400D series
