BV420D

Toshiba’s most advanced desktop print technology was incorporated into the sleekest case design for ultimate user experience.

Coming with a new powerful and scalable system architecture the BV420D models are future-proove.  With a broad set of standard interfaces and optional Wi-Fi and/or Bluetooth, the BV420D easily integrates into even the most complex IT environments.
  • Market leading throughput with up to 7 ips
  • Compact & sleek design with a small footprint
  • Intuitive & clear user experience
  • Vast print languages & emulations
  • Huge performance & functionality at a truly low total cost of ownership
  • SOTI Connect certified for IoT device management

Specifications: BV420D

GENERAL

Print Method:
Direct thermal
Printhead:
Flat head
User Interface:
3x LED, 2x key
Dimensions (W x D x H):
174 x 218 x 173 mm
Weight:
2.0 kg
Memory:
128 MB (FROM), 128 MB (SRAM)
Operating Temperature/Humidity:
5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-20°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz

PRINT

Sensor:
Reflective, transmissive
Resolution:
GS02: 203 dpi, TS02 300 dpi
Max. Print Speed:
GS02: 7 ips (177.8 mm/s), TS02: 5 ips (127 mm/s)
Max. Print Width:
GS02: 108 mm, TS02: 105.7 mm
Print length:
Batch: 8-997 mm, Cut: 19.4-993 mm*, Peel-off: 23.4-150.4 mm*
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar, USPS Intelligent Mail Barcode
2D Codes:
Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix, Aztec Code
Fonts:
Bitmap font, outline font, price font, optional TTF, writable characters

MEDIA

Alignment:
Centred
Backing Paper Width :
25.4-118 mm
Label Thickness:
0.06-0.19 mm
Inner Media Core Diameter:
25.4, 38.1, 42, 76.2 mm
Outer Media Core Diameter:
Standard: Max. 127.0 mm, Optional: Max. 214 mm
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

Emulation:
ZPL II, DPL, SBPL, EPL
Printer Drivers:
Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012/Server 2008 R2
SDK:
iOS, Android
Interface:
USB 2.0, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802,11a/b/g/n (dual band for 2.4 GHz/5 GHz*/**, Bluetooth V2.1 EDR with MFi certified*/**, serial port*
Language mode :
TPCL, Basic Command Interpreter (BCI)
Label Software :
BarTender UltraLite (co-packed)
IoT Device Management:
SOTI Connect

OPTIONS

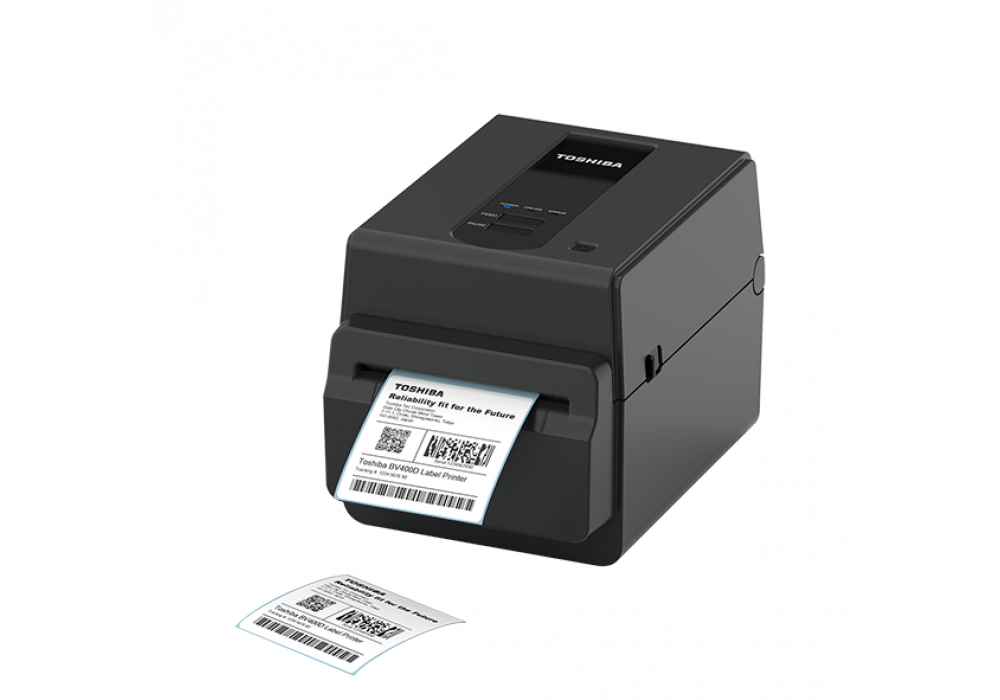

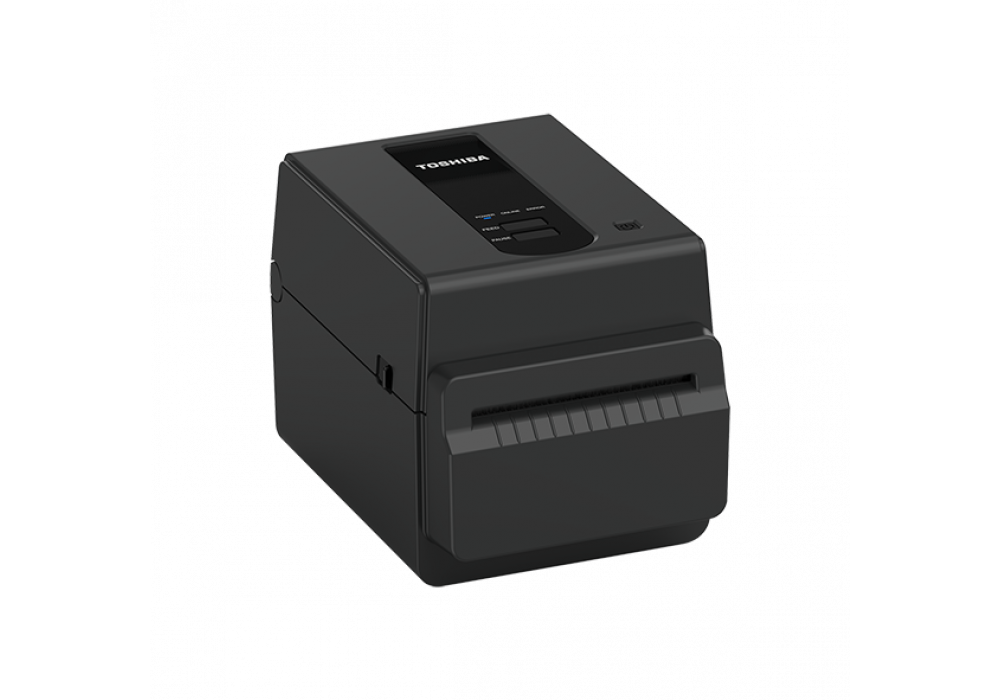

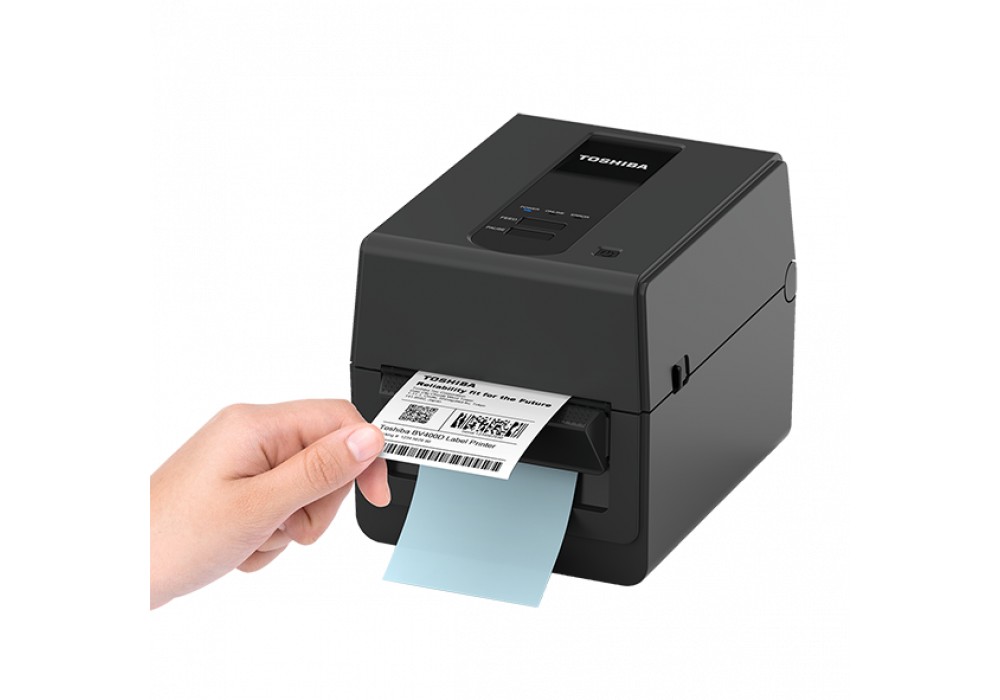

Full cutter module, partial cutter module, peel-off module, serial interface board, wireless LAN module, Bluetooth module, AC adapter cover, external media stand
**:
Availability varies from country to country

Accessories

  • BV700-BLTH-QM-S - Bluetooth interface (V2.1 + EDR) for BV400D series
  • BV700-WLAN-QM-S - Wi-FI interface (802.11 a/b/g/n) for BV400D series
  • BV700-RS-QM-S - RS-232C serial interface for BV400D series
  • BV914-ACD-QM-S - AC adaptor cover for BV410D
  • BV214-P-QM-S - Partial cutter for BV410D
  • BV700-WLAN-QM-S - Wi-FI interface (802.11 a/b/g/n) for BV400D series
  • BV904-PH-QM-S - External 8” OD Media Stand for BV400D series
  • BV914-H-QM-S - Peel Off Module for BV410D
  • BV214-F-QM-S - Full cutter for BV410D
