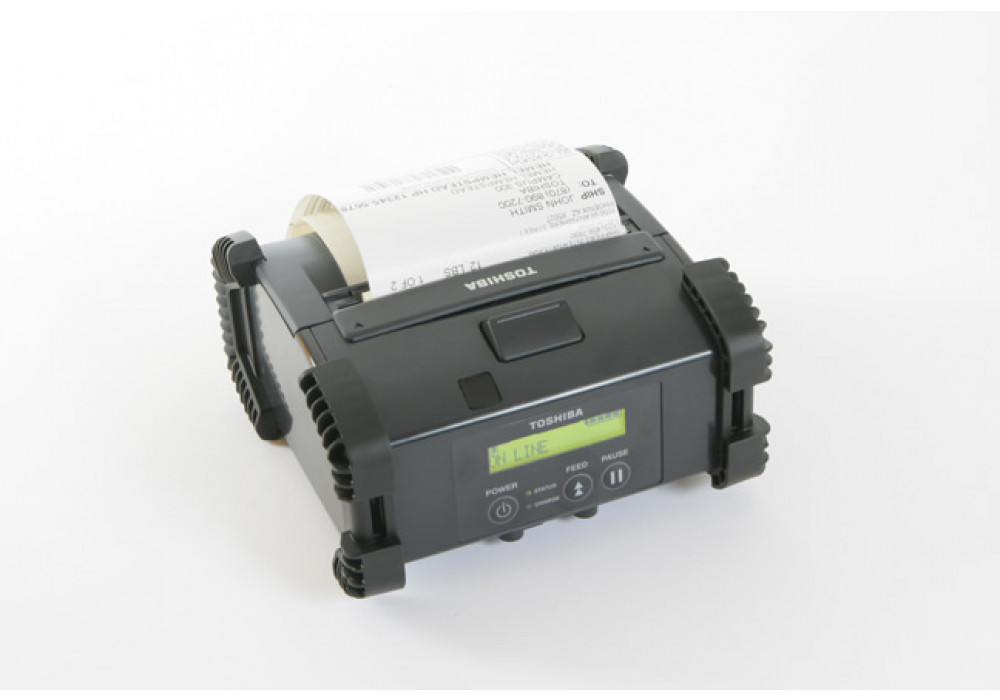

B-EP4DL

The B-EP4DL offers our best thermal printing innovations, wherever you are, right at your fingertips.

The B-EP4DL combines a very compact and solid body designed to resist the tough conditions of mobile use with a very efficient and fast print engine able to produce large size labels with minimum operations. The array of available options including multiple interfaces, the large media capacity, the easy operability, the advanced functions are some of the advantages that make the B-EP4DL so simple to integrate into any type of mobile workflow.
  • Solid, compact and modern design
  • Fast and efficient on the spot labeling for a large array of applications
  • Improved productivity thanks to large paper holding capacity
  • Easy integration in mobile workflows with multiple connection interfaces
  • Advanced LCD display screen with operator information

Specifications: B-EP4DL

GENERAL

Printing Technology:
Direct thermal
Thermal Print Head Type:
Flat
Interface:
IrDA, USB, Serial*, Bluetooth*, Wireless LAN*
Memory:
8 MB (Flash ROM), 16 MB (S-RAM)

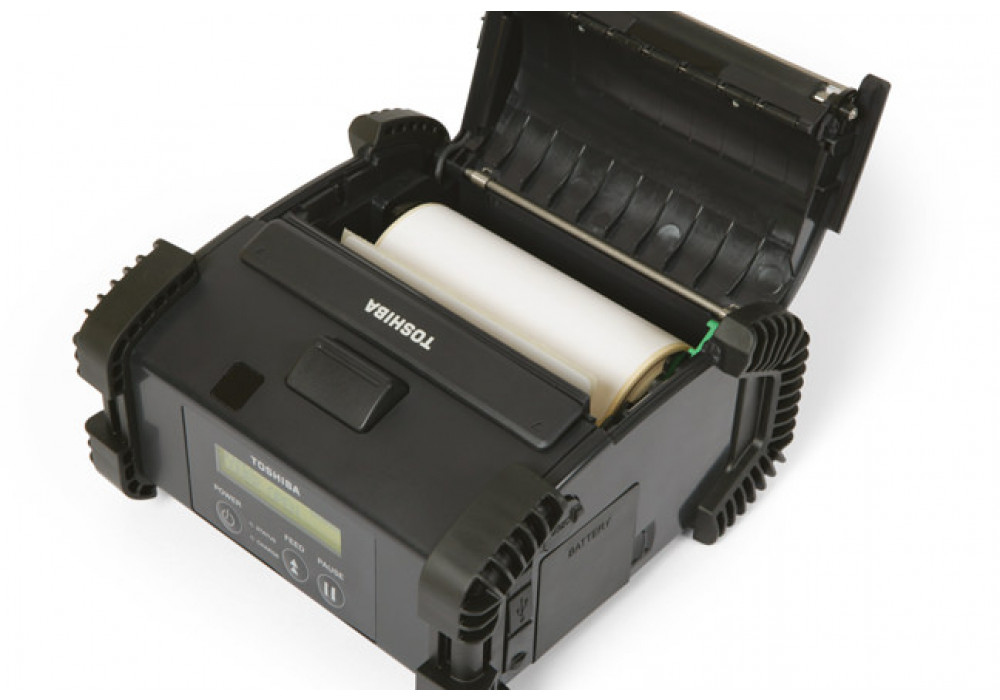

Media loading:
Top opening
Sensor:
Reflective, Transmissive
User Interface:

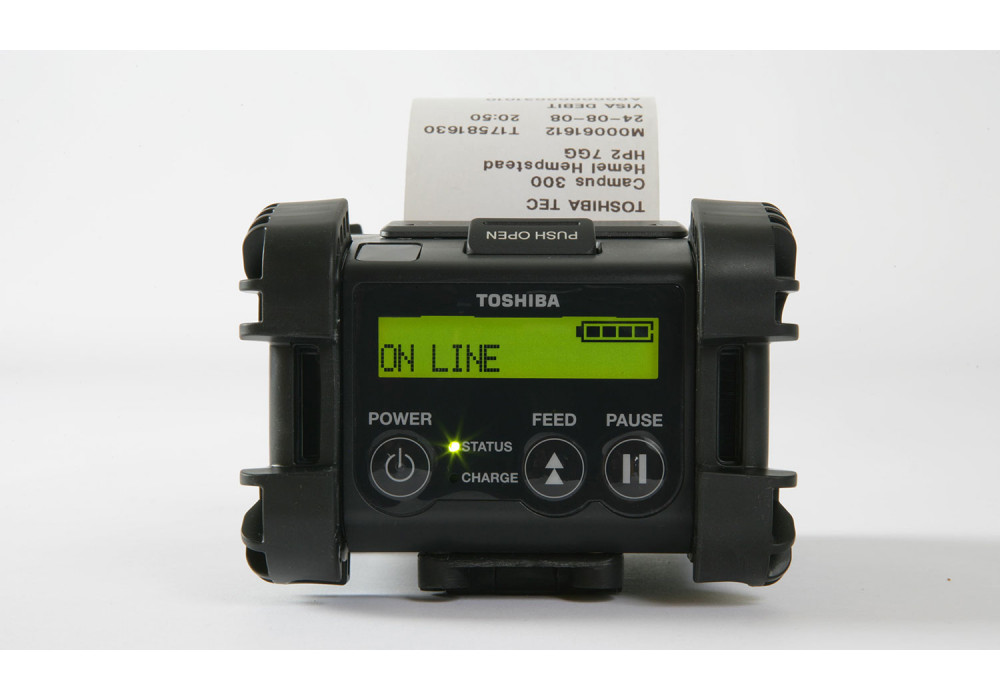

LCD screen (16 characters x 2 lines), Status indicator, Beeper
Operator keys:
Feed, Pause
Dimensions (W x D x H):
150 x 145 x 75 mm
Weight:
0.86 kg
Duty Cycle**:
600 labels / day

PRINT

Print width:
4.09 inches (104 mm)
Print Speed:
Up to 4.13 ips (105 mm/sec)
Resolution:
203 dpi
Fonts:
Bitmap, Outline, Writable characters
Print length:
Max. 995 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Customer Barcode, GS1 Databar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417

MEDIA

Media width:
48 - 115 mm
Max outer roller diameter:
68 mm
Media type:
Labels, Receipts, Coreless media

FUNCTIONS

Print Functions:
Z Mode ready
Programming language:
TPCL, BCI, ESC, POS
Issue mode:
Batch, Peel-off
System Features:
Automatic power off, Power save mode, WiFi certified*
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

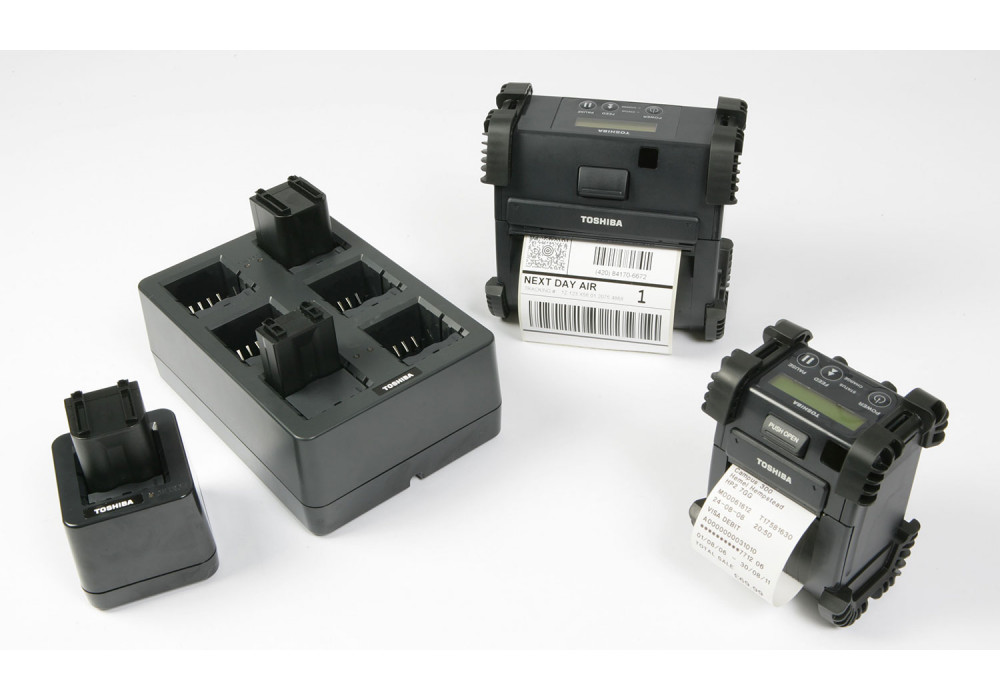

Accessories

  • B-EP800-AC-QM-R - AC Adaptor (220 V)
  • B-EP904-LL-QM-R - Linerless Label Kit
  • B-EP800-CHG6-QM-R - 6-Slot Battery Charger
  • B-EP800-DC48-QM-R - DC Adaptor (12 V-48 V)
  • B-EP804-BT-QM-R - Battery
  • B-EP900-SS-QM-R - Shoulder Strap
  • B-EP700-WLAN-QM-R - Wireless LAN Interface Kit
  • B-EP800-CHG-QM-R - 1 -Slot Battery Charger
  • B-EP700-BLTH-QM-R - Bluetooth Interface Kit
  • B-EP704-BLT2-QM-R - Bluetooth Interface Kit for B-EP4
